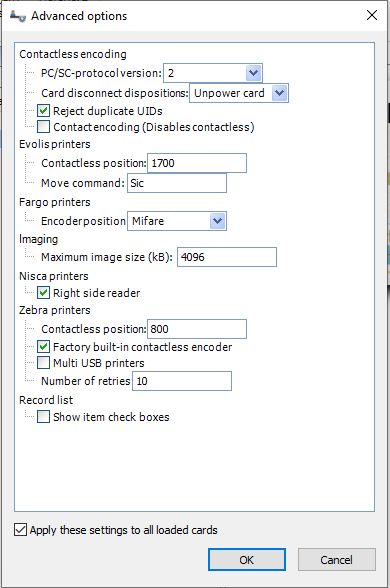

CardExchange Press Help

Contactless encoding

PC/SC-protocol:

Select the PC/SC protocol 1 or 2

Card disconnect dispositions:

Select Leave card, Reset card, Unpower card, Eject card

Reject duplicate UIDs:

Reject cards where successive cards have the same UID

Evolis printers

Contactless position:

Tune the offset for the card under the contactless reader

Move command:

Set the specific move command to be used. Differs for printers with contact

Fargo printers

Encoder position:

Set the position for the contactless reader

Imaging

Maximum image size (kB):

Set the maximum image size for images on the card design (Default 4096 kB)

Nisca printers

Right side reader:

Check this option if the contactless reader is located on the right side instead of at the top location

Zebra printers

Contactless position:

Tune the offset for the card under the contactless reader

Factory built-in contactless encoder:

Select if the printer has a factory built-in encoder so CardExchange Press will use the internal SDK in stead of escape commands

Multi USB Printer:

Check this option if you have multiple ZXP printers being used on the same PC, if any of the printers are busy CardExchange Press will wait and then retry to communicate with the printer

Number of retries:

When using multiple printers as above you can specify the number of retry attempts

Record list

Show item check boxes

Show check boxes next to each record in the names list to allow them to be selected easily
